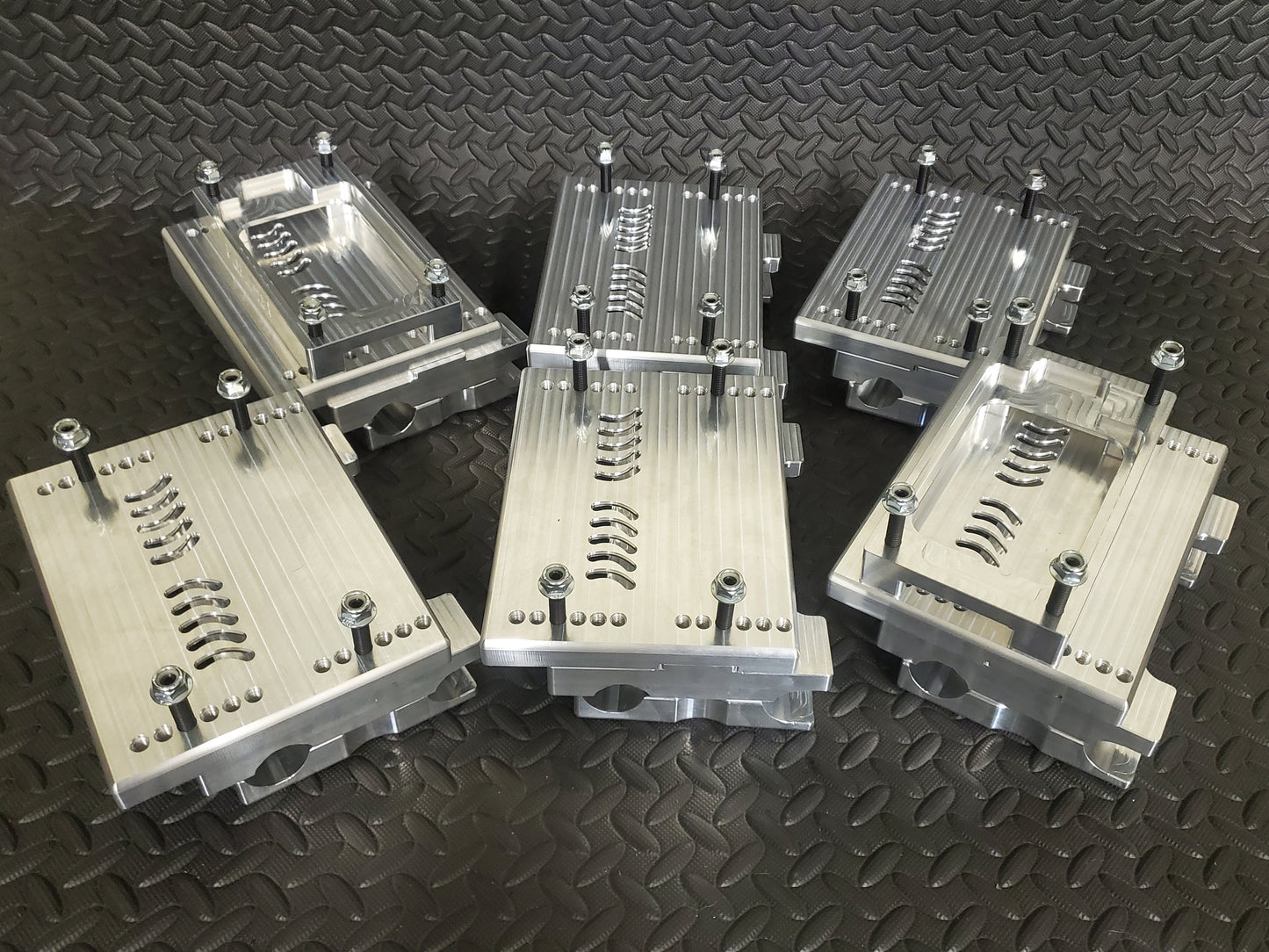

LO206 Kart Mount

Briggs Animal/LO206 mount complete with all hardware.

Angled top plate to help gain better carburetor and air filter clearance above the tire.

The Angle also helps gain spacing between the exhaust and rear gear to add more gear selection.

Fits METRIC and some STANDARD Kart spacing from 88 MM(3.46") to 92MM(3.62").

Max frame clamping tube diameter is 32mm(1.25") down to 28mm(1.10").

Fits on 1-1/8" coyote frames as well.

Spacers sold separately to compliment cooling flow and gain tire/gear clearance.

All lower mounting threads are Heli-coiled for 55% higher pullout strength.

Made of 6061 aluminum with Black oxide grade 12.9 hardware and Nyloc flange nuts.

Designed and machined in the U.S.A.  All Raw materials are products of U.S.A. Kaiser Materials.  Material certifications on hand just request for info.
